High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line

ODM pocket spring assembly machine

OEM pocket spring assembly machine

NOBO Spring Bed Net Production Line

Place of Origin:

Foshan,china

Brand Name:

NOBO

Certification:

Model Number:

NB-120

Request A Quote

High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line

Product Details

Production Capacity:

10-14 Unit/min

Capacity Of Glue Tank:

15000(18000/30000)g

Control Of Assembling Platform:

SCREEN Control

Hot Melt Application System:

Nordson (the USA) Or Robatech (Switzerland)

Air Consumption:

0.3 M³/min

Assembling Zoning Mattress:

Yes

Payment & Shipping Terms

Minimum Order Quantity

1Sets

Price

Negotiable

Packaging Details

Standard packing

Delivery Time

15-45 work days

Payment Terms

T/T, L/C

Supply Ability

2 Set/Sets per Month

Pocket Spring Automatic Machine High Quality Mattress Machine

Get Best Price

Video

140 Springs / Min Pocket Spring Machine Production Wire Diameter 1.4-2.3mm

Get Best Price

Video

Nobo Pocket Spring Making Machine Production Capacity 140 Springs/Min

Get Best Price

Video

2.3mm Wire Diameter Pocket Spring Machine Capacity 160 Pcs / Min

Get Best Price

13827773241

caseyng@nobochina.com

86-757-86911389

Contact Now

Product Description

High Efficiency Pocket Bag Making Spring Assembling Factory Direct Sale Higher Quality

Automatic spring bed net production line

High Efficiency Pocket Bag Making Spring Assembling Factory Direct Sale Higher Quality

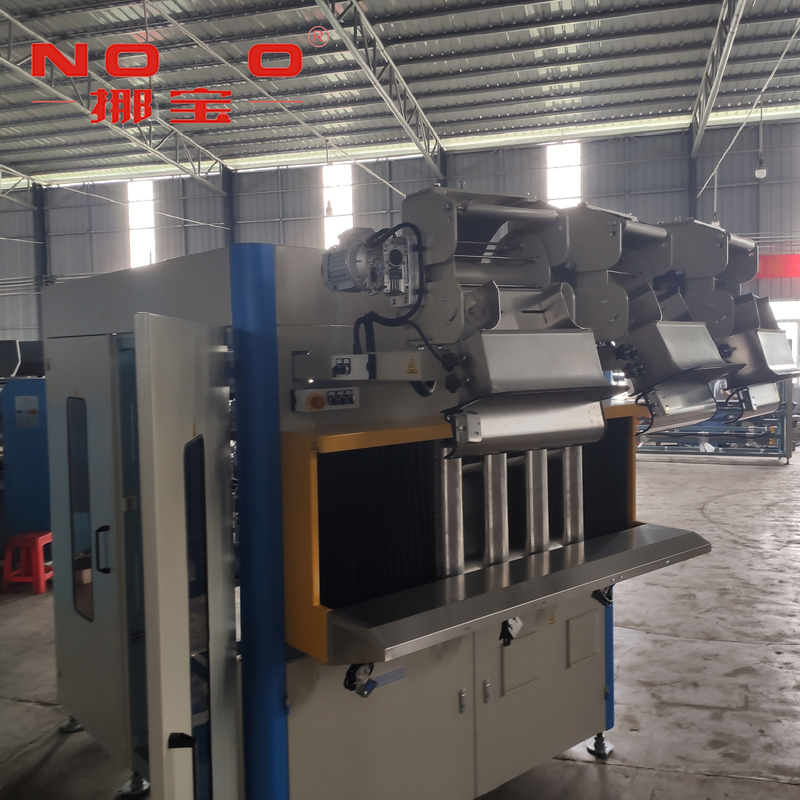

NB-120 latest model for producing "Bonell" type innerspring units. It can produce innerspring units

directly from wire.Firstly the steel wire is coiled to a spring, and then transferred and inserted to the

assembler by the automatic feeding system.

Adopt Imported Glue Tank and Servo Control System for Pushing Feeding Spring Rows

Technical data:
Production capacity :	10-14 Unit/min	Capacity of glue tank :	15000(18000/30000)g
Control of assembling platform :	SCREEN control	Hot melt application system :	Nordson (the USA) or Robatech (Switzerland)
Air consumption :	0.3 m³/min	Assembling zoning mattress	yes

Technical data:
Work Efficiency:	80 units/8 hours	Maximum width of the bed nets:	2000mm (option2000mm)
Adaption bed nets high:	80-180mm	Spring wire diameter:	2.0-2.4mm
String of spring steel wire diameter:	1.3-1.6mm	The total electric power:	20kw
Weight of machines:	9000kgs	Electrical source:	3 phase 380V/50HZ
Figure size:	length 5000 x width 3200 x high 2200mm
Applies to spring-caliber:	58 Fixture Series 55-56mm(1.8 meters29 rows of springs)
	60Fixture Series 60-65mm(1.8 meters27 rows of springs)
	68 Fixture Series 65-70mm(1.8 meters24rows of springs)
	78 Fixture Series 65-73mm(1.8 meters22rows of springs)
	88 Fixture Series75-82mm(1.8 meters19rows of springs)
	98 Fixture Series 82-90mm(1.8 meters18rows of springs)

NOBO(mattress) machinery co.,ltd

Company Profile

NOBO(mattress) machinery co.,ltd, was founded in 2007, at the beginning of the establishment is a

professional commitment to mattress machinery research and development, design, manufacturing,

sales and service of high-tech enterprises.

For many years the development of the NOBO mattress machinery company has become a

"mattress equipment" industry perfect production chain and sales service system of professional

manufacturers, the company has excellent sales team and technology development team, Listen

to the voice of the customer ,for customer service and customer Creating value is our eternal pursuit.

Business philosophy:

Quality first, customers pay back the community.

Quality guidelines: Customer-oriented quality Innovation and continuous improvement The quality

of services, ahead of the competition Full participation and achievement of objectives

Quality Objectives: To ensure product quality and credibility. To strengthen the competitiveness.

Customer demand to provide better products, so

that the customer satisfaction. Customer requirements for the goal to achieve quality in the first.

High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line 0

High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line 1

High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line 2

Main business:
Mattress spring making machine ,spring assembling machine, Conjoined coiling machine, Automatic

Name: High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line
Brand: NOBO
SKU: NB-120
Rating: 4.8 (125 reviews)

mattress spring making machine , Tape edge machine , Packing machine

High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line 6

Ce certificate: Spring Makiing Machine & String Spring Machine

High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line 8

Package&Shipping:

You can just tell us your needs and we will arrange everything from the initial consultaion to the delivery

of your chosen port anywhere in the world timely. All of our produrts are well packed to ensure the safety

of the products.

Packaging
Size	(L) * (W) * (D)mm
Weight	*kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line 10

Delivery:
Payment:	30% by T/T as down payment before production, and the rest 70% by T/T as balance payment before shipment.
Time of Delivery:	Within 20 days after receiving the buyer’s down payment.
Warranty:	The seller provides one year warranty of the main machine starting from the moment the buyer signs the acceptance certificate. For the wearing parts, consumption of materials and the damage incurred by the Buyer's incorrect operation are out of the warranty range.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line 12

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line 13

FAQ:

High Efficiency Pocket Spring Assembly Machine Spring Bed Net Production Line

ODM pocket spring assembly machine

OEM pocket spring assembly machine

NOBO Spring Bed Net Production Line

Pocket Spring Automatic Machine High Quality Mattress Machine

140 Springs / Min Pocket Spring Machine Production Wire Diameter 1.4-2.3mm

Nobo Pocket Spring Making Machine Production Capacity 140 Springs/Min

2.3mm Wire Diameter Pocket Spring Machine Capacity 160 Pcs / Min

Automatic spring bed net production line

High Efficiency Pocket Bag Making Spring Assembling Factory Direct Sale Higher Quality

NB-120 latest model for producing "Bonell" type innerspring units. It can produce innerspring units

directly from wire.Firstly the steel wire is coiled to a spring, and then transferred and inserted to the

assembler by the automatic feeding system.

Adopt Imported Glue Tank and Servo Control System for Pushing Feeding Spring Rows

Technical data:

Production capacity :

10-14 Unit/min

Capacity of glue tank :

15000(18000/30000)g

Control of assembling platform :

SCREEN control

Hot melt application system :

Nordson (the USA) or Robatech (Switzerland)

Air consumption :

0.3 m³/min

Assembling zoning mattress

yes

NOBO(mattress) machinery co.,ltd

Company Profile

NOBO(mattress) machinery co.,ltd, was founded in 2007, at the beginning of the establishment is a

professional commitment to mattress machinery research and development, design, manufacturing,

sales and service of high-tech enterprises.

For many years the development of the NOBO mattress machinery company has become a

"mattress equipment" industry perfect production chain and sales service system of professional

manufacturers, the company has excellent sales team and technology development team, Listen

to the voice of the customer ,for customer service and customer Creating value is our eternal pursuit.

Business philosophy:

Quality first, customers pay back the community.

Quality guidelines: Customer-oriented quality Innovation and continuous improvement The quality

of services, ahead of the competition Full participation and achievement of objectives

Quality Objectives: To ensure product quality and credibility. To strengthen the competitiveness.

Customer demand to provide better products, so

that the customer satisfaction. Customer requirements for the goal to achieve quality in the first.

Main business: Mattress spring making machine ,spring assembling machine, Conjoined coiling machine, Automatic

mattress spring making machine , Tape edge machine , Packing machine

Ce certificate: Spring Makiing Machine & String Spring Machine

Package&Shipping:

You can just tell us your needs and we will arrange everything from the initial consultaion to the delivery

of your chosen port anywhere in the world timely. All of our produrts are well packed to ensure the safety

of the products.

Packaging

Size

(L) * (W) * (D)mm

Weight

*kg

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery:

Payment:

30% by T/T as down payment before production, and the rest 70% by T/T as balance payment before shipment.

Time of Delivery:

Within 20 days after receiving the buyer’s down payment.

Warranty:

The seller provides one year warranty of the main machine starting from the moment the buyer signs the acceptance certificate. For the wearing parts, consumption of materials and the damage incurred by the Buyer's incorrect operation are out of the warranty range.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

1. who are we?

We are based in Guangdong, China, start from 2013,sell to Northern Europe(10.00%),Eastern Asia(10.00%),

Mid East(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),

North America(10.00%),South Asia(5.00%),Southern Europe(5.00%),Western Europe(5.00%),Central

America(5.00%). There are total about 51-100 people in our office. 2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment; 3.what can you buy from us?

Automatic bunch of spring machine,Bonnell spring coiling machine,Mattress Border Frame Wire Bending,

Automatic Coiler Machine,Automatic side seamer of the bed cushion 4. why should you buy from us not from other suppliers?

Main business:
Mattress spring making machine ,spring assembling machine, Conjoined coiling machine, Automatic

The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always final Inspection before shipment;

3.what can you buy from us?

Automatic Coiler Machine,Automatic side seamer of the bed cushion

4. why should you buy from us not from other suppliers?

need in accordance with special requirements of custom-made mattress production facilities.

5. what services can we provide?
