Packaging
Size	(L) * (W) * (D)mm
Weight	*kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery:
Payment:	30% by T/T as down payment before production, and the rest 70% by T/T as balance payment before shipment.
Time of Delivery:	Within 20 days after receiving the buyer’s down payment.
Warranty:	The seller provides one year warranty of the main machine starting from the moment the buyer signs the acceptance certificate. For the wearing parts, consumption of materials and the damage incurred by the Buyer's incorrect operation are out of the warranty range.

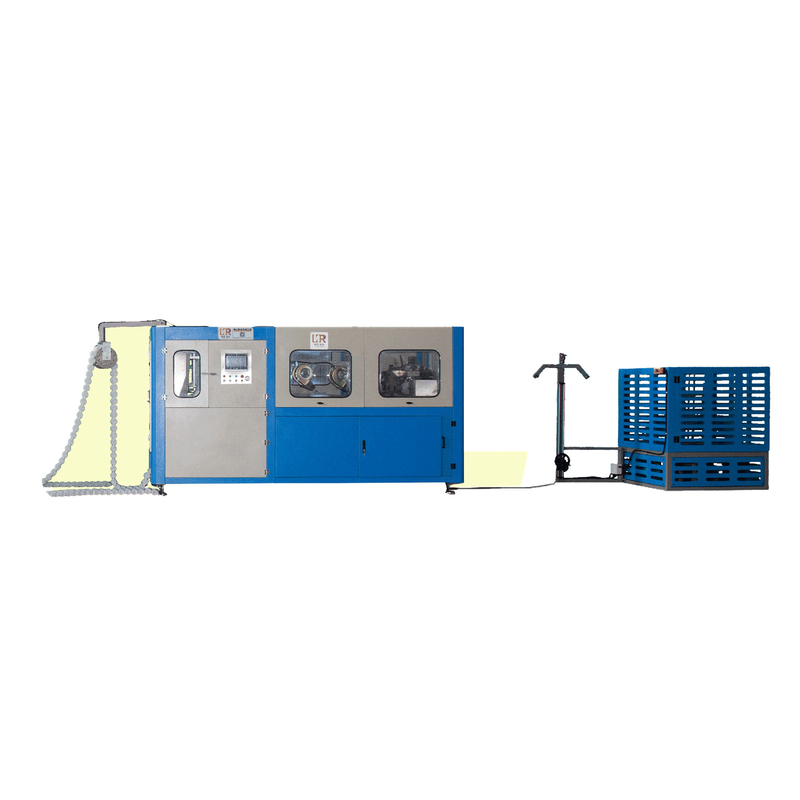

LN-120 Mattress Packing Machine 120springs/Min For Mattress Pocket Spring

LN-120 Mattress Packing Machine 120springs/Min For Mattress Pocket Spring

LN-120 Mattress Packing Machine 120springs/Min For Mattress Pocket Spring

120springs/Min Mattress Packing Machine

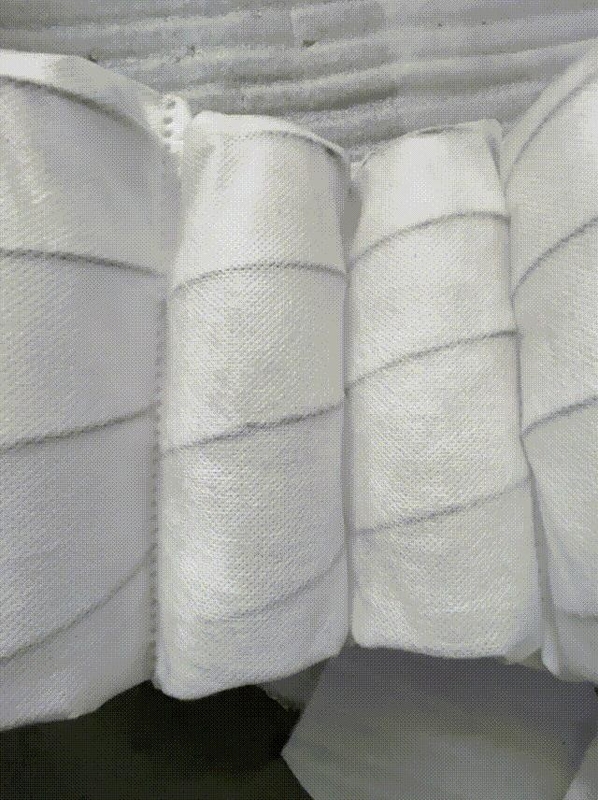

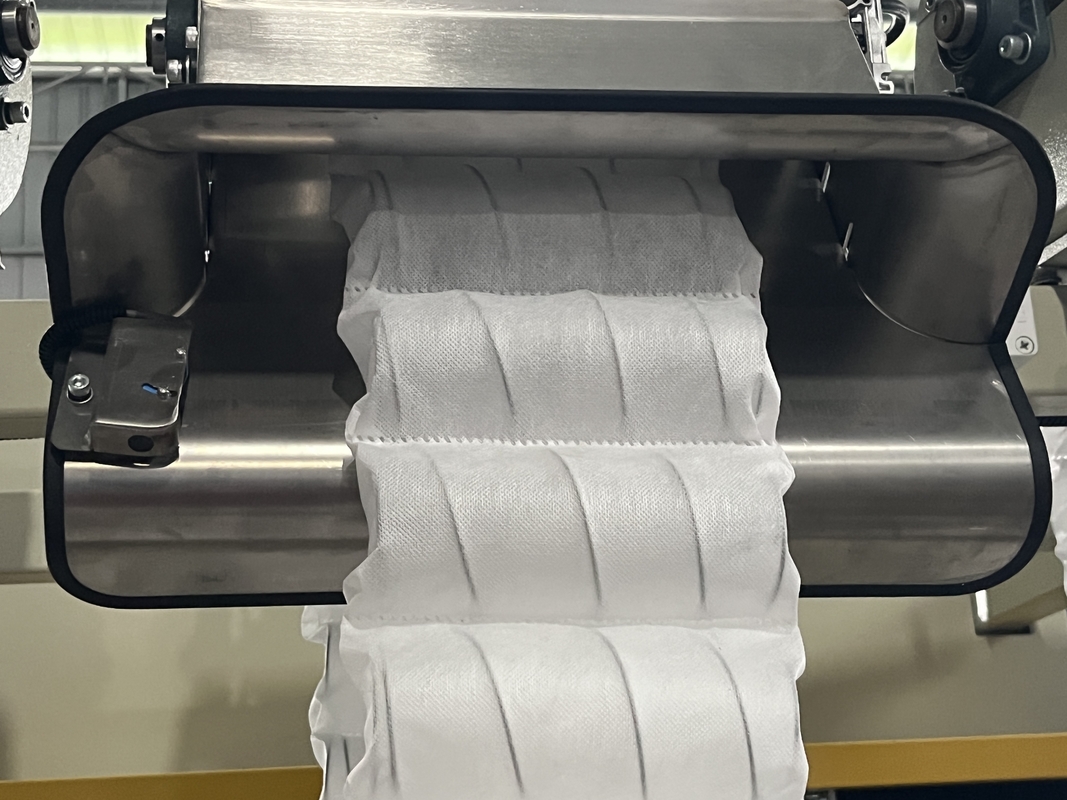

Pocket Spring Mattress Packing Machine

cylindrical Mattress Packing Machine

LN-120 latest model for producing "Bonell" type innerspring units. It can produce innerspring units

directly from wire.Firstly the steel wire is coiled to a spring, and then transferred and inserted to the

assembler by the automatic feeding system.After this,the upper and lower springs are coiled together

at the same time and helical wire is coiled, cut and clamped at bothend automatically. When a unit is

finished, it could be ejected automatically.

LN-120

Consumption Material Data

Production capacity

120springs/min.

Non-woven fabric

Coiling head

One servo coiling head

Double wires coiling head

Fabric density

65～90g/m²

Working principle

Servo control

Fabric width

360-600mm

Spring shape

Standard versions: barrel and cylindrical

Inner dia. of fabric roll

Min. 75mm

Air consumption

Approx. 0.25m³/min.

Outer dia. of fabric roll

Max. 1000mm

Air pressure

0.6-0.7 mpa

Steel wire

Power consumption in total

Approx. 38KW

Approx. 43KW

Wire diameter

1.3-2.3mm

Voltage

3AC 380V

Inner dia. of wire roll

Min. 320mm

Frequency

50/60 Hz

Outer dia. of wire roll

Max. 1000mm

Input current

55A

65A

Acceptable weight of wire roll

Max. 600kg

Cable section

3*16mm² + 2*10mm²

1. Fast And Stable, Production Output: 120 Springs/Min. Low Failure Rate

2. Online Settings And After Sales Service Chief Engineer. Can Be Remote Access Contact User Permission Line Mechanical.

Working temperature

+5°C～+35°C

Weight

Approx. 3600KG

Approx. 3800KG

Size

9000*1700*2200mm

9000*3A200*2200mm

NOBO(mattress) machinery co.,ltd

Company Profile

NOBO(mattress) machinery co.,ltd, was founded in 2007, at the beginning of the establishment is a

professional commitment to mattress machinery research and development, design, manufacturing,

sales and service of high-tech enterprises.

For many years the development of the NOBO mattress machinery company has become a

"mattress equipment" industry perfect production chain and sales service system of professional

manufacturers, the company has excellent sales team and technology development team, Listen

to the voice of the customer ,for customer service and customer Creating value is our eternal pursuit.

Main business: Mattress spring making machine ,spring assembling machine, Conjoined coiling machine, Automatic

mattress spring making machine , Tape edge machine , Packing machine

Ce certificate: Spring Makiing Machine & String Spring Machine

Package&Shipping:

You can just tell us your needs and we will arrange everything from the initial consultaion to the delivery

316mm² + 210mm²

900017002200mm

90003A2002200mm

Main business:
Mattress spring making machine ,spring assembling machine, Conjoined coiling machine, Automatic

The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always final Inspection before shipment;

3.what can you buy from us?

Automatic Coiler Machine,Automatic side seamer of the bed cushion

4. why should you buy from us not from other suppliers?

need in accordance with special requirements of custom-made mattress production facilities.

5. what services can we provide?
