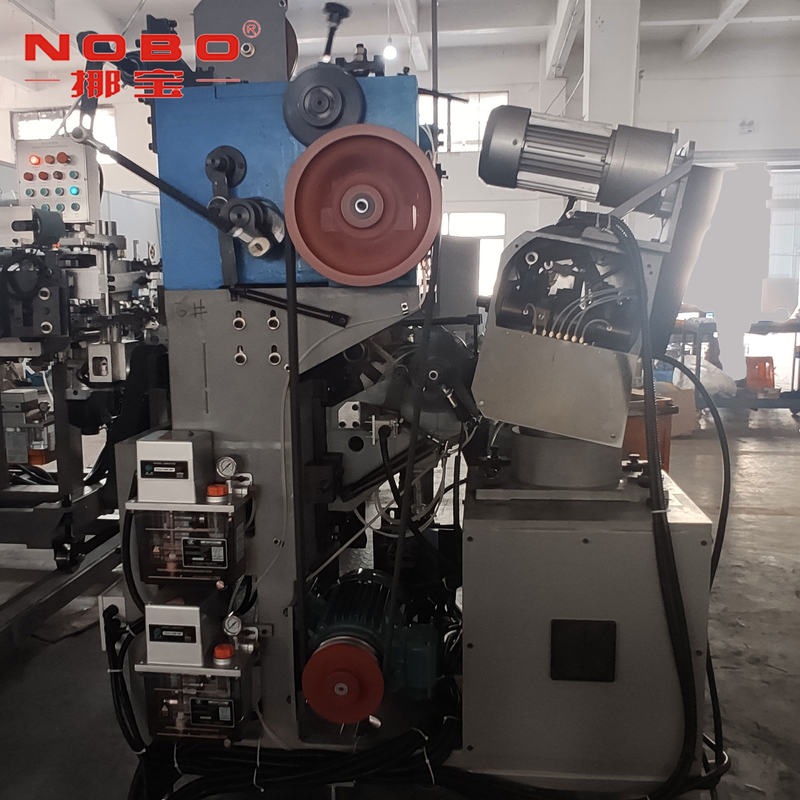

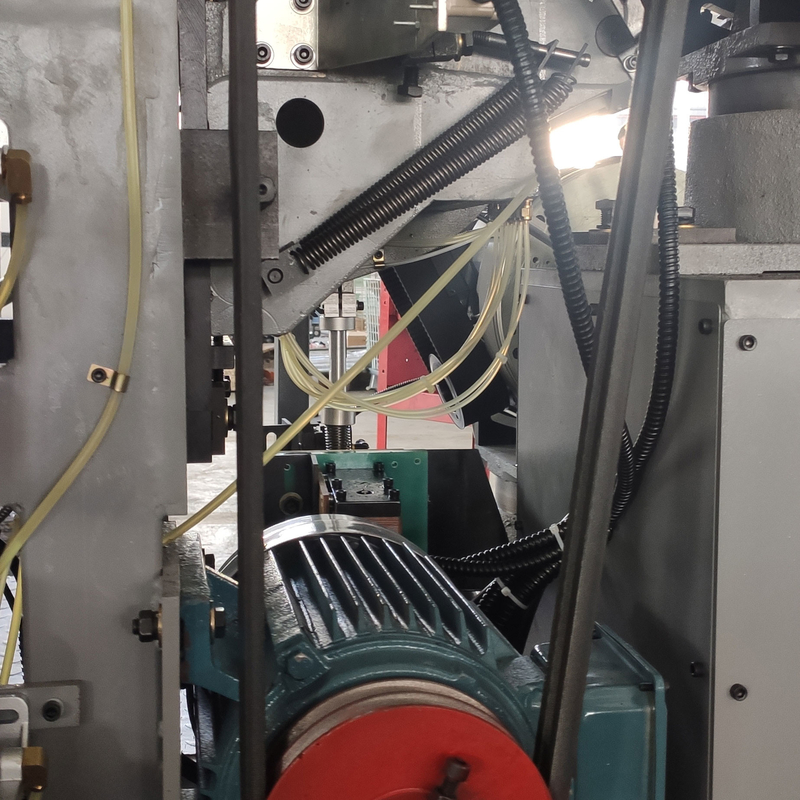

Mattress Production Line Automatic Mattress Spring coiling Making Machine

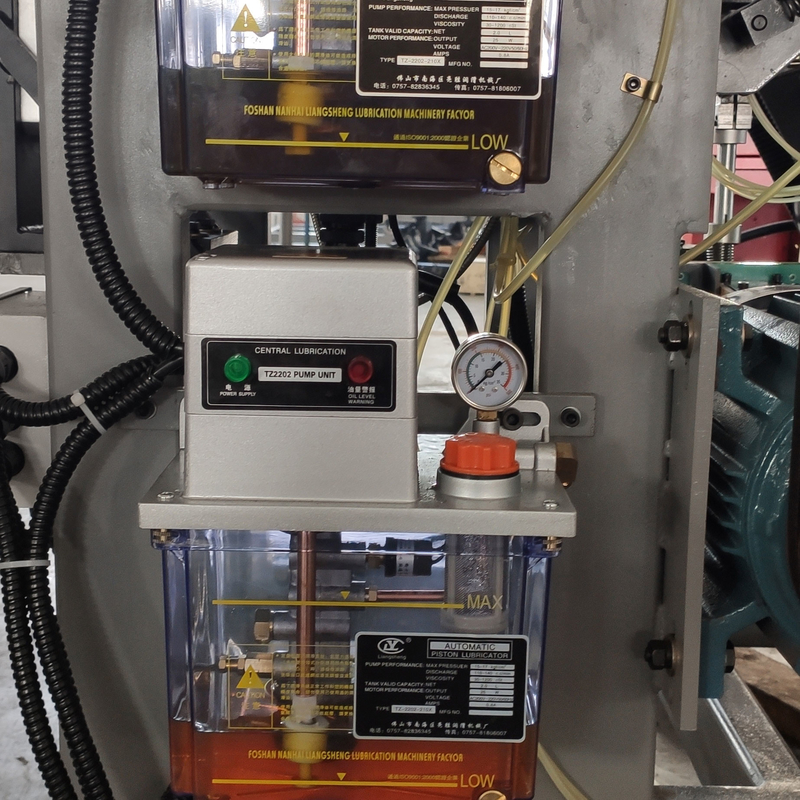

The STATE-OF-THE-ART DIGITAL SPRING COILING MACHINE produces Bonell springs for mattress to a spring, knotted at both ends, heat treated and to be collected to an outlet channel. The coiler utilizes a fully integrated computerized Programmable Logic Controller(PLC)and Servo control system, also with two CPU and high sensitivity touch screen to reach remote-control support. All machine functions include wire feeding length, heat treatment, lubrication and self-protecting are automatically controlled.
| NOBO-GH-80S(DIGTAL SPRING COILING MACHINE | |||
| Spring Type: | Bonell Spring | Capacity: | 80 PCS/min |
| Spring End Ring: | 62-75MM,75-95MM | Steel Wire Gauge: | 1.8-2.4mm |
| Spring Height: | 80-190MM | Convolutions: | 4-7N |
| Main Drive Power: | 4KVA | Swift Frame | 2.2KW |
| Core Components | PLC, Motor | Weight: NET | 2730KG |
| Power Requirement: | 380V,3 Phase,50-60HZ(Option:415V-480V,220V) | ||
Packaging |
|
Size |
(L) * (W) * (D)mm |
Weight |
*kg |
Packaging Details |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
