Automatic tape edge machine NOBO-WB-4 Mattress machine Tape Edge machine
Sewing Head:	Chain stitch (lock stitch	Angel of Sewing	25-65
Mattress Thickness:	120-400mm	Capacity:	10-20 units/hours
Power:	3 phase, 380V 50Hz	Total power:	3.0kw
Conner Motor Power:	0.75kw	Line Motor Power:	Lifting Motor Power:
Lifting Motor Power:	0.37kw	Sewing Head	0.37kw
Air consumption:	0.6-0.8MPa	Table Size:	3680 x 1920 x 900mm

Packaging
Size	(L) * (W) * (D)mm
Weight	*kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery:
Payment:	30% by T/T as down payment before production, and the rest 70% by T/T as balance payment before shipment.
Time of Delivery:	Within 20 days after receiving the buyer’s down payment.
Warranty:	The seller provides one year warranty of the main machine starting from the moment the buyer signs the acceptance certificate. For the wearing parts, consumption of materials and the damage incurred by the Buyer's incorrect operation are out of the warranty range.

Stable High Performance Tape Edge Machine Tapage Machine For Mattress

High Performance Tape Edge Machine

1.2KW Stable Tape Edge Machine

NoBo tapage machine for mattress

NOBO Mattress Tape Edge Machine

Tape Edge Chain Stitch Machine

300u Chainstitch Mattress Making Equipment Automatic Tape Edge Machine 15-20 Sheets / Hour

Auto Flip Mattress Tape Edge Machine 0.12-0.4m Mattress Chain Stitch Machine

Automatic tape edge machine

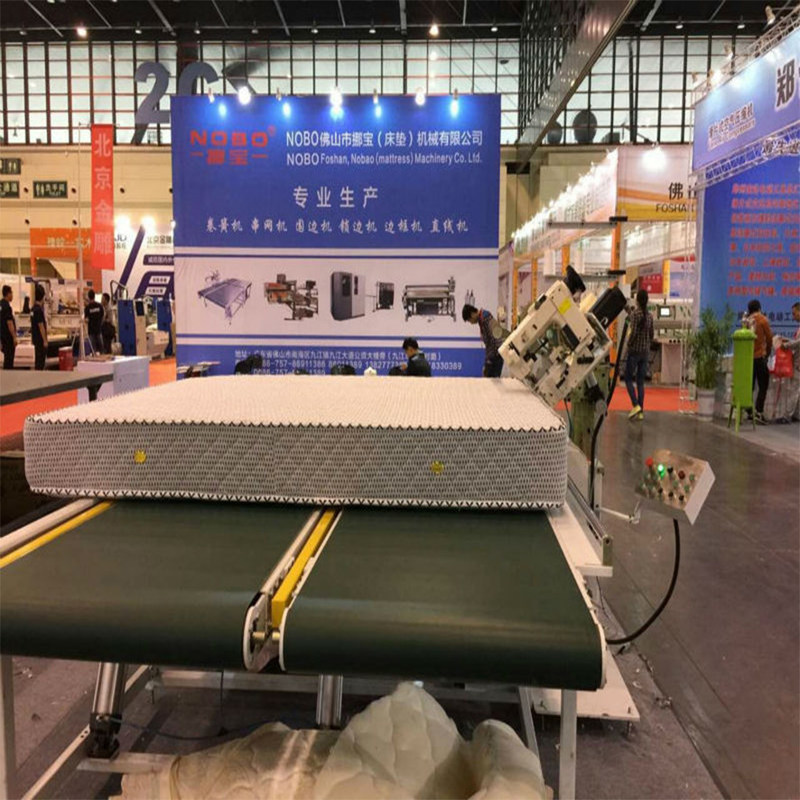

NOBO-WB-4 the belt Tape Edge Machine was used in sewing mattress border panel and over panel together. It could move mattress

automatically during working. Its sewing head was fixed. It’s the new generation of the Tape Edge Machine in domestic market. The machine

was controlled by PLC; and designed with body engineering; Mattress could be forwarded, turned corner and turn down automatically. The fixed

board of sewing head could be lifted automatically also when the mattress is used on corner. Working speed could be lower and came back with

other working steps together the angel and height of sewing head could be adjusted. Another characteristic is the sewing head’s needle spot

function. Because the machine could be forward automatically, so the machine could be either separate part of mattress production, or one part

of complete production line. The machine’s structure is simple, and workers could be trained to operate it within short time. It save the working

intensity and update the working Efficiency.

NOBO(mattress) machinery co.,ltd

Company Profile

NOBO(mattress) machinery co.,ltd, was founded in 2007, at the beginning of the establishment is a

professional commitment to mattress machinery research and development, design, manufacturing,

sales and service of high-tech enterprises.

For many years the development of the NOBO mattress machinery company has become a

"mattress equipment" industry perfect production chain and sales service system of professional

manufacturers, the company has excellent sales team and technology development team, Listen

to the voice of the customer ,for customer service and customer Creating value is our eternal pursuit.

Business philosophy:

Quality first, customers pay back the community.

Quality guidelines: Customer-oriented quality Innovation and continuous improvement The quality

of services, ahead of the competition Full participation and achievement of objectives

Quality Objectives: To ensure product quality and credibility. To strengthen the competitiveness.

Customer demand to provide better products, so

that the customer satisfaction. Customer requirements for the goal to achieve quality in the first.

Main business: Mattress spring making machine ,spring assembling machine, Conjoined coiling machine, Automatic

mattress spring making machine , Tape edge machine , Packing machine

Ce certificate: Spring Makiing Machine & String Spring Machine

Package&Shipping:

You can just tell us your needs and we will arrange everything from the initial consultaion to the delivery

of your chosen port anywhere in the world timely. All of our produrts are well packed to ensure the safety

of the products.

Packaging

Size

(L) * (W) * (D)mm

Weight

*kg

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery:

Payment:

30% by T/T as down payment before production, and the rest 70% by T/T as balance payment before shipment.

Time of Delivery:

Within 20 days after receiving the buyer’s down payment.

Warranty:

The seller provides one year warranty of the main machine starting from the moment the buyer signs the acceptance certificate. For the wearing parts, consumption of materials and the damage incurred by the Buyer's incorrect operation are out of the warranty range.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

1. who are we?

We are based in Guangdong, China, start from 2013,sell to Northern Europe(10.00%),Eastern Asia(10.00%),

Mid East(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),

North America(10.00%),South Asia(5.00%),Southern Europe(5.00%),Western Europe(5.00%),Central

America(5.00%). There are total about 51-100 people in our office. 2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment; 3.what can you buy from us?

Automatic bunch of spring machine,Bonnell spring coiling machine,Mattress Border Frame Wire Bending,

Automatic Coiler Machine,Automatic side seamer of the bed cushion 4. why should you buy from us not from other suppliers?

We have 7 years production experience for mattress machine. In order to meet the market demand customer

need in accordance with special requirements of custom-made mattress production facilities. 5. what services can we provide?

Accepted Delivery Terms: FOB；

Accepted Payment Currency:USD;

Accepted Payment Type: T/T,L/C,D/P D/A;

Language Spoken:English,Spanish,Chinese
